Suzi Oil Production Line

Perilla seed oil is refined by traditional physical pressing methods. It can also use subcritical low-temperature extraction technology to fully retain the nutrient essence of perilla seeds. The oil is light yellow, the oil is clarified, and the smell is delicate.



Ⅰ、Production process of Suzi oil pressing equipment:

Perilla seeds → cleaning → pressing → filtering → cold pressing oil → going to the refining workshop



1.The complete set of Suzi oil equipment developed by Zhongxing Grain And Oil Machinery is mainly cold pressing of Suzi, but also hot pressing.

2.Using cleaning, removing impurities, and cold pressing technology, the pressed oil has a light color, low acid value and high nutritional value.

3.The benzopyrene index that customers are more concerned about is solved in the pressing process, and the nutrient content is fully maintained.

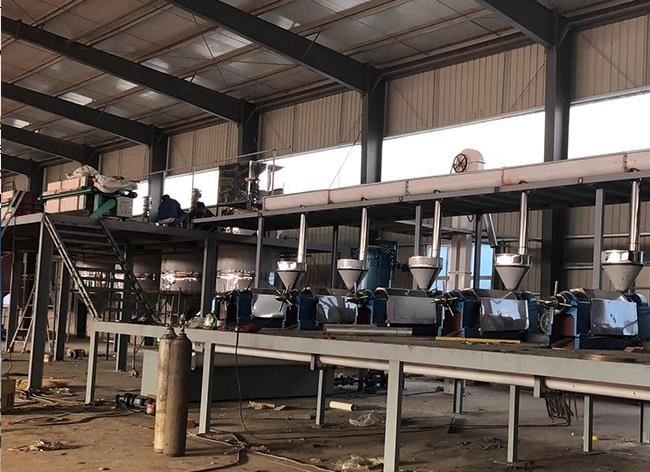

4.The oil press adopts hydraulic and screw cold press, the output of this machine can be adjusted, the residual oil is low, and the production efficiency is high.

Main equipment description:

Serial number	Equipment name	Quantity	Description
1	Hoist	2	Used for conveying materials in every link
2	Cleaning sieve	1	Used to clean up impurities contained in raw materials
3	Oil press	1	Used to squeeze walnut oil
4	Filter	1	Used to filter a small amount of impurities in crude oil



Ⅱ、Refining process:

1.Brief description:

This workshop adopts the intermittent refining production process. According to the type and quality of crude oil, the process parameters can be adjusted and different refining methods can be selected to produce the first, second and third grade edible oil; the process equipment we provide has the following advantages:

Flexible and convenient adjustment, even if the quality of raw materials changes slightly, it can still be produced normally;

Maximum use of heat, significant energy saving effect;

The fully enclosed production process avoids the oxidation of grease and ensures the high quality and stability of the product;

The appearance of the equipment is clean and beautiful, the equipment is guaranteed for a long time, and the life-long after-sales service.

2.Refining process description:

(1)Process diagram:

                    Caustic soda         Hot water      White clay       vacuum     Recycled water

                              ↓                          ↓                    ↓                    ↓                     ↓

Crude oil → Alkali refining → Degumming → Bleaching → Deodorize → Cool down → Deodorized oil → Go to the dewaxing workshop



(2)Process description:

① Alkali refining operation: adjust the oil temperature to about 60℃, then add 20-30Be lye (1kg caustic soda + 5kg water lye) within 5-10min, and stir at 60r/min for 5-10min, observe After the reaction, the soap particles form a separation condition and start to slowly increase the temperature. Change to slow stirring, and increase by about 1°C per minute. When the temperature reaches 65°C, the oil soap separates obviously. Stop stirring and start to settle the soap feet. Generally, 4 Soap feet are released after -6h.

② Washing operation: After the soapstock is released, the oil is further heated to 75℃, and then added with hot water greater than 5% of the weight of the oil for washing. The water temperature should be 5-10℃ higher than the oil temperature and easy to emulsify if the water temperature is too low. After the water is finished, continue to stir for 5 minutes, and then settle for 3-4 hours, release soapy water, and repeatedly wash with water for 1-2 times, depending on the quality of the clear oil.

③ Decolorization operation: Turn on the vacuum pump to make the vacuum ≧700mmHg; first suck the washed alkali refining oil into the decolorization tank, turn on the stirring and increase the temperature under vacuum, and continue stirring for 10 minutes after the temperature reaches 100°C to reduce the water content in the oil to below 0.1% , And then suck in a small amount of decolorizing agent (white clay or activated carbon), the addition amount depends on the oil product, generally 2%-4% of the oil amount, after stirring for 20 minutes, the temperature is cooled to about 90 ℃, the vacuum is broken, and the decolorization pump is turned on to the filter Carry out oil-soil separation to obtain decolorized oil.

④ Deodorization operation: The decolorized oil is sucked into the deodorization tank by vacuum. When the vacuum degree reaches 755mmHg and the temperature is above 150℃, open the bottom of the steam directly to start distillation and deodorization, and start timing.

a. Deodorization time: 2-3h,

b. Deodorization temperature: 220℃-240℃,

c. Deodorization vacuum degree: above 755mmHg,

d. The whole process must be directly steam distilled.

3. Main equipment description:

Serial number	Equipment name	Quantity	Description
1	Refining tank	2	Used for acid refining, alkali refining and water washing
2	Decolorization tank	1	Used for dehydration, mixing grease and decolorizing agent
3	Deodorant tank	1	Used for distillation to remove oil odor and light components, made of 304 stainless steel
4	Vacuum pump	1	Provide the vacuum required for decolorization and deodorization, up to 75mmHg or more
5	Air compressor	1	Blow dry bleached white clay
6	Steam generator	1	Produce steam for distillation
7	Filter	1	Filtration and separation of clay oil
8	Thermal oil furnace	1	Provide system heat, temperature can reach 300℃



Ⅲ、Dewaxing process

1. Brief description:

In the processing of Suzi oil grease, the waxiness inherent in Suzi oil grease can be separated from the oil through the dewaxing process, which enhances the nutritional value of the oil and improves the taste and quality of the oil.

The equipment characteristics of this workshop:

The operation is flexible and convenient, and the labor intensity is extremely low;

The production and production environment are clean and hygienic in a fully enclosed state;

All clean tap water is recycled, no sewage is generated or discharged, and it meets environmental protection standards.

2. Description of dewaxing process:

deodorized oil → pre-cooling → crystallization and crystal growth → filtration and separation → refined oil



3. Main equipment description:

Serial number	Equipment name	Quantity	Description
1	Crystallizer	3	Used for oil freezing, crystallization and crystallization
2	Refrigeration unit	1	Provide low-temperature refrigerant to cool and freeze grease
3	Filter	1	Used to separate oil and wax
4	Refrigerant pump	1	For refrigerant circulation
5	Finished fuel tank	1	Used to temporarily store and filter refined oil
6	Product oil pump	1	Used to transport refined oil to the refined oil tank









Professional Advice



Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,so that we can make flow chart production line for you as your requirement. zhongxing machinery will stand at your point to suggest low cost and suitable production line for you. Sincerely want to cooperate with you.
